DG502UP 2-door controller, 500 users. Readers Sold Separately.

£110.00 (ex. VAT)

Manufacturer: CDVi

Product Information

DG502UP is a high quality 2-door controller, which is simple to install, programme and maintain. A standalone controller, programming is carried out via a master programming code, and simple commands allow users to be added or deleted and lock time to be adjusted. Control of fail secure or fail safe locks makes the DG502UP a very flexible controller, being suitable for standard locking requirements or more critical fire escape routes. A user is issued a card or fob, and associated to one of 500 available slots. If the user loses the card/fob, then the slot is deleted and a new card/fob issued. Non-volatile memory ensures all information is retained during power failure. 2-door controller Assign users to door 1, door 2 or both 500 user capacity 2 timed/latching relay outputs 2 exit button inputs Connects readers,5 year warranty. 12V ac/dc 200mA 116 x 116 x 23mm.

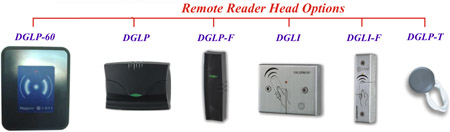

Works with the following readers.

DGLP - standard proximity reader
DGLI - stainless steel proximity reader
DGLPFN - standard proximity reader narrow style
DGLIFN - stainless steel proximity reader narrow style
DGLPT - panel mount proximity readerPROMI-500
DGLP60 -

  • Management of two doors
  • Two relays
  • 500 users
  • Onboard electronics
  • Tamper contact
  • Audio and visual signaling (buzzer and LED)
  • 12Vac/dc
  • 200mA
  • 116 x 116 x 23mm


Product Code: DG502UP
